In this article
Split Settings let you nest data, remove empty columns, toggle variable labels, and position totals at the start, end, or hide them in your table.
1: About Split Settings
The split settings accessed in the Advanced Reporting ribbon, allows you to organize data with nested views, streamline your tables by removing unpopulated columns, toggle the visibility of variable labels for clarity, and position your table's total values at the beginning, end, or omit them entirely.
2: Available Split Settings
2.1: Nest variable splits
View splits side by side or in a nested arrangement.

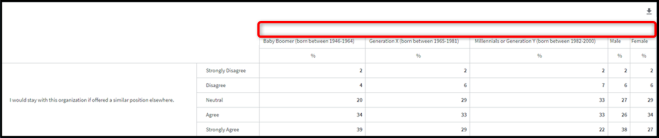

Un-nested splits

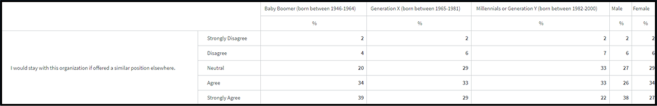

Nested splits
2.2: Remove empty columns
Hide columns that contain no data, focusing only on populated columns. This can be particularly useful when dealing with large data sets with many variables such as country data.
2.3: Display variable labels
Show or hide the variable labels in columns. You may want to have this setting disabled if you want a cleaner view in your crosstab, especially with nested splits.
Display variable labels enabled
Display variable labels disabled
2.4: Totals
Designates the "Totals" column as the first or last column in your table, or hidden (none).
None

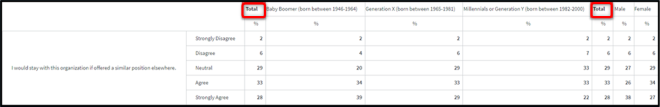

First

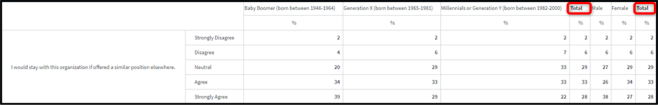

Last
3: Display all Split drop-zones

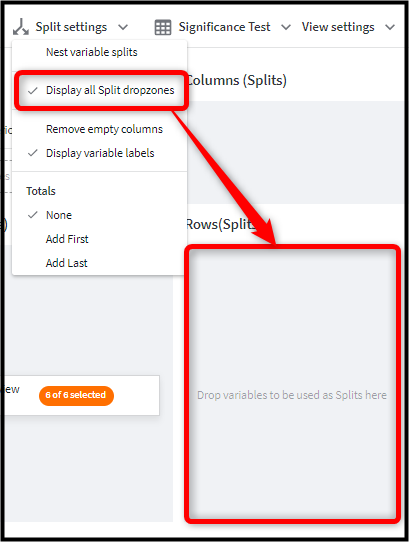

The Display all Split drop-zones option displays an additional drop zone for rows. Once the new row drop zone is displayed, you can drag a variable into it to nest it under another variable. To use this function, follow these steps:
Navigate to the Split Settings menu at the top of the Crosstab tool.
Select "Display All Split Drop Zones" from the drop-down menu. This will reveal additional split areas for rows and columns in the table setup interface.
From the variable list on the left-hand side, locate the desired variable
Drag and drop the variable into the Rows (Splits) section. This will nest the variable under the previously added row variable.

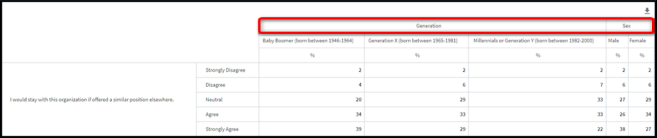

Click the Generate Table button to process your Crosstab. The generated table will reflect the nested variable structure for easy analysis.
